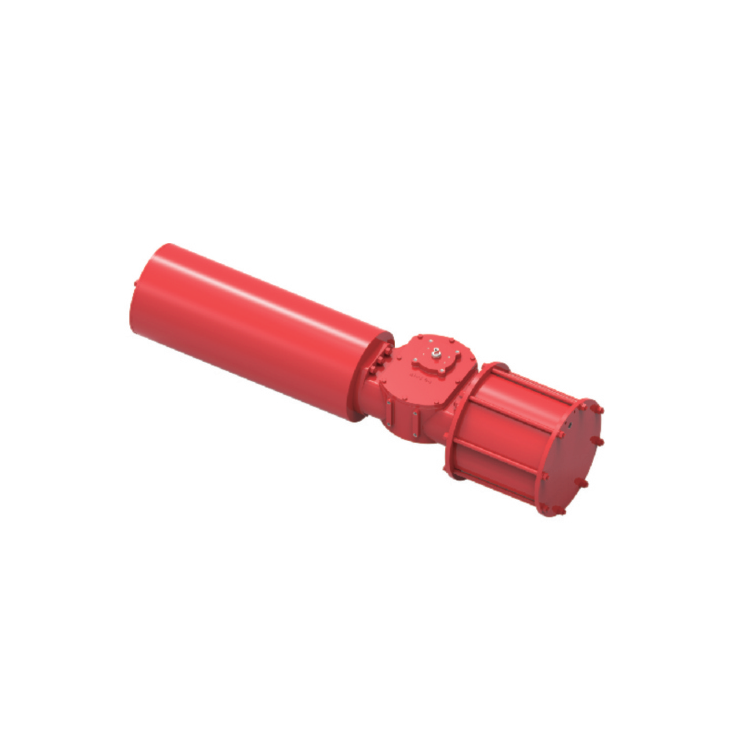

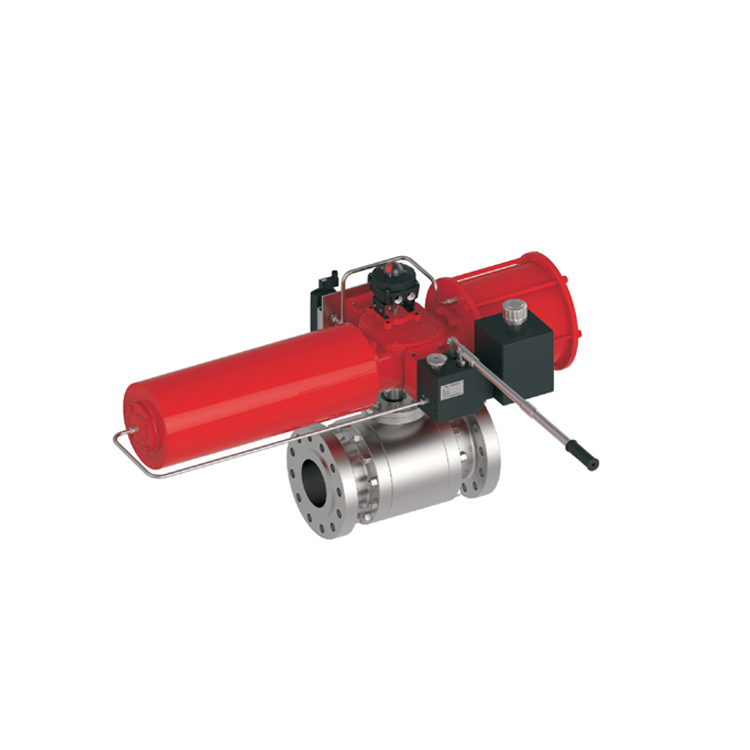

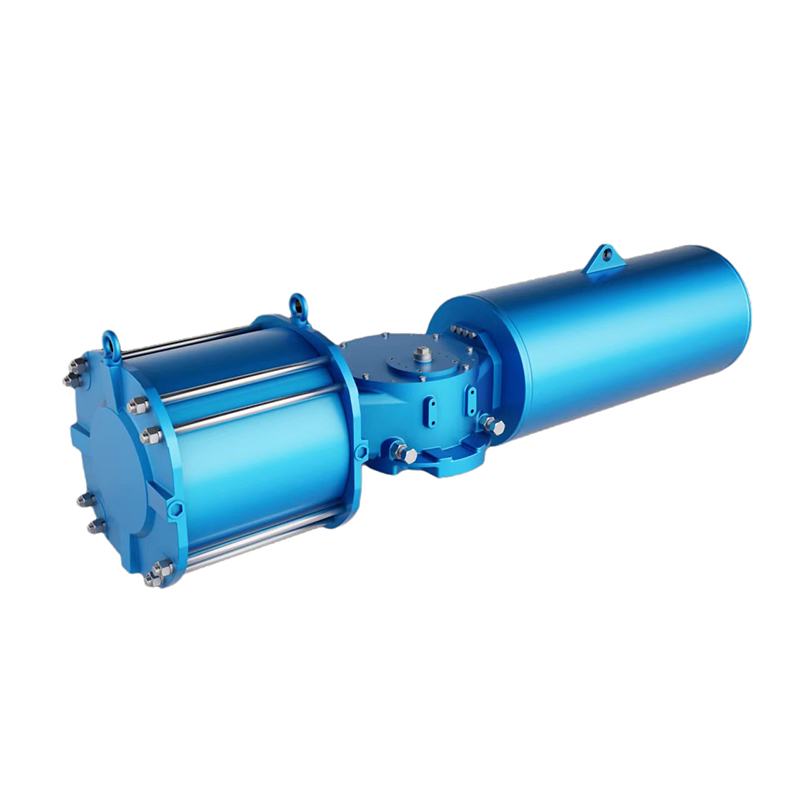

HXY series scotch yoke heavy duty pneumatic actuator for ball valve butterfly valve

Product Description

The HXY series scotch yoke heavy duty pneumatic actuator for ball valve butterfly valve from Zhejiang Jimai Auto-Tech Co., Ltd. is specifically designed for high output torque applications in ball and butterfly valves. The double-acting type can achieve a maximum output torque of 107,847 NM, while the spring return variant can achieve 30,000 NM at 4 bar air pressure, which is suitable for virtually all operational conditions. The modular construction of the HXY series scotch yoke heavy duty pneumatic actuator for ball valve butterfly valve enables each unit to accommodate a wide range of torque requirements by utilizing a variety of cylinders and springs.

The modular design simplifies the process of assembly and stowage, thereby improving the efficiency of on-site maintenance and replacement. For its movable components, this pneumatic actuator with a high-torque valve is equipped with self-lubricating bearings. It is capable of extending the service life by a significant margin and exhibits exceptional abrasion resistance. The waterproof functionality of the HXY series scotch yoke heavy duty pneumatic actuator for ball valve butterfly valve is significantly improved by the inclusion of O-rings in the box, cover, and other connecting components. This effectively prevents external moisture and water from permeating the actuator's interior.

Product Attributes

X-RING configuration

X-ring seals are utilized in areas impacted by the reciprocating action of the actuator, rather than conventional O-ring seals. This design mitigates the risk of seal flanging during movement.

Copper sliding mechanism

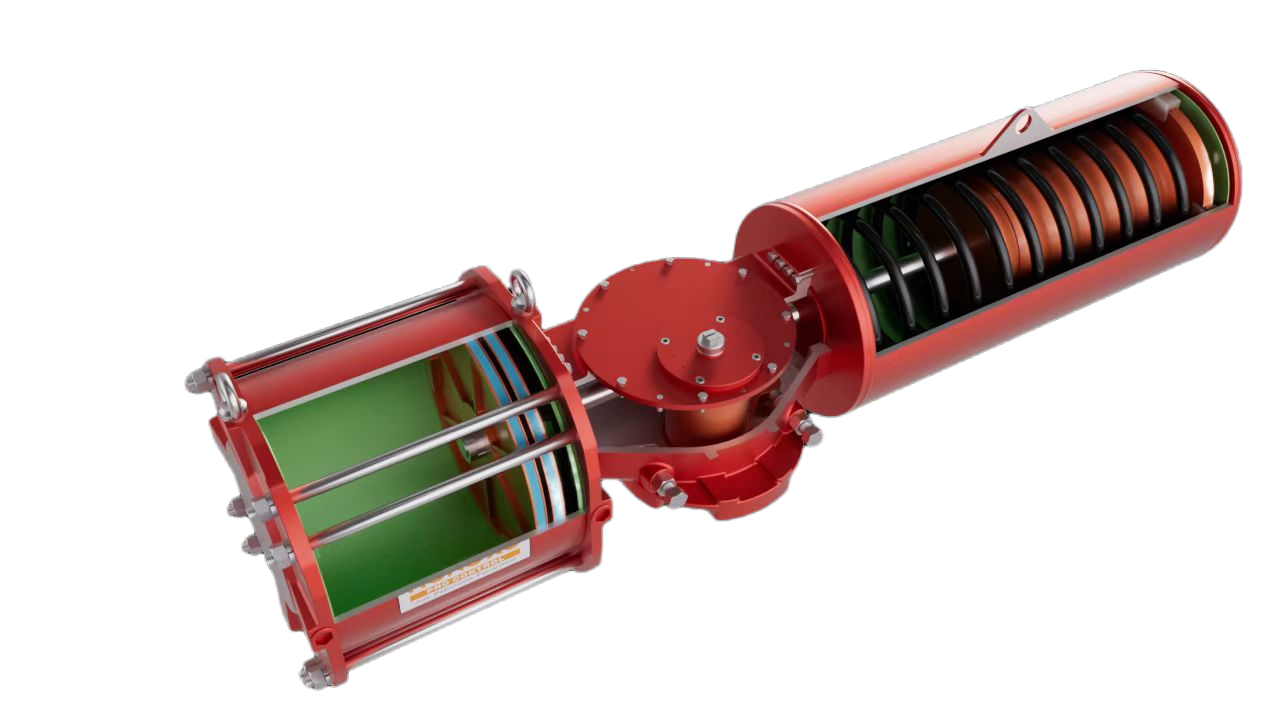

The copper slider mechanism is designated for the connection between the crank and the hinge pin. The square copper slider transforms the transfer of force from a linear to a planar mode. Composed of 9-4 aluminum bronze, exhibiting enhanced strength and superior wear resistance.

Enhance the composition of susceptible components

The guide belt utilizes phenolic fiber and resin, substituting conventional PTFE and POM guide belts.

Front configuration of air connection and overhead arrangement of lifting lug

The front configuration of the air connector facilitates convenient and flexible tube connections. The overhanging configuration of the lifting lug enables lifting.

Product Material

Cylinder Module

Drive Module

Spring Module

Double Acting Profile Parameter List

Output torque of double acting model
